    50dBm Output Power RF Linear Power Amplifier with CE Certification and Customizable Frequency for 900-980MHz Applications

    Ask Lasest Price
    Brand Name : Kimpok
    Model Number : KP-RFPA900
    Certification : CE certificate
    Price : negotiation
    Payment Terms : L/C,T/T,Paypal
    Supply Ability : 50000pcs/month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    50dBm Output Power RF Linear Power Amplifier with CE Certification and Customizable Frequency for 900-980MHz Applications

    Detail Information(Long Range High Gain RF Linear Power Amplifier with SMA-Female Ports for 900-980MHz Applications)
    Place of Origin:
    Shenzhen,China
    Brand Name:
    Kimpok
    Certification:
    CE certification
    Model Number:
    KP-RFPA900
    Highlight:
    Long Range RF Amplifier
    ,
    High Gain RF Linear Power Amplifier
    ,
    SMA-Female Ports RF PA
    Trading Information(Long Range High Gain RF Linear Power Amplifier with SMA-Female Ports for 900-980MHz Applications)
    Minimum Order Quantity:
    1
    Price:
    negotiation
    Packaging Details:
    International Standard Package
    Delivery Time:
    3-7 working days
    Payment Terms:
    T/T,Paypal,L/C
    Supply Ability:
    5000PCS/month
    Product Description(Long Range High Gain RF Linear Power Amplifier with SMA-Female Ports for 900-980MHz Applications)
    75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC
    Product Overview

    Professional RF linear power amplifier with high gain and output power for long-range applications in the 900-980MHz frequency range.

    Key Specifications
    ParameterValue
    Model NumberKP-RFPA900
    Frequency Range900-980MHz (customizable)
    Gain50dBi
    Max RF Output Power50dBm /100W
    Working Voltage27VDC (27V-28V)
    Working Current10A
    RF ConnectorsSMA-Female
    Dimensions210*110*25mm
    Weight2kg
    Detailed Technical Specifications(Long Range High Gain RF Linear Power Amplifier with SMA-Female Ports for 900-980MHz Applications)
    No.ItemSpecification
    1Frequency Range GSM900-980MHz (Customized)
    2Gain50dB
    3Max RF Output Power48.5dBm-50dBm
    4Input Range≤10dBm
    5Gain Adjust Range31dB
    6Gain Adjust Step1dB
    7In-Band Ripple2dB
    8Input/Output VSWRLess 1.5
    9Working Voltage27VDC
    10Working Current75W: 8A
    100W: 9.1A
    11RF Input/Output PortsSMA-Female
    Optional Features
    • Shut-down over High VSWR
    • Shut-down over High temperature
    • Auto-restart after 30 seconds against shut-down
    • DB9 Male connector with RS485 interface (includes free PC software)
    • DB15 Female connector with various control and monitoring functions
    Product Images

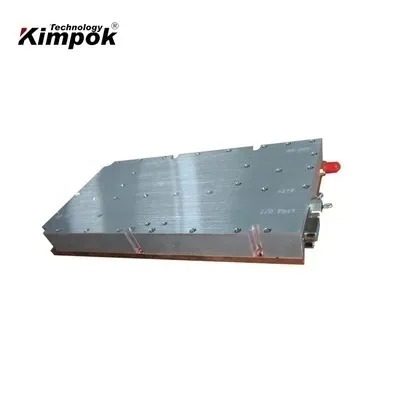

    Long Range High Gain RF Linear Power Amplifier with SMA-Female Ports for 900-980MHz Applications 0 Long Range High Gain RF Linear Power Amplifier with SMA-Female Ports for 900-980MHz Applications 1
    Manufacturing Information
    Brand Name: Kimpok Technology
    Place of Origin: Shenzhen, China
    Certification: CE Certification
    Port: Hong Kong/Shenzhen
    Ordering Information
    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging: International standard packing
    Delivery Time: 3-7 work days
    Payment Terms: T/T, PayPal, Alipay
    Supply Ability: 50000/month
