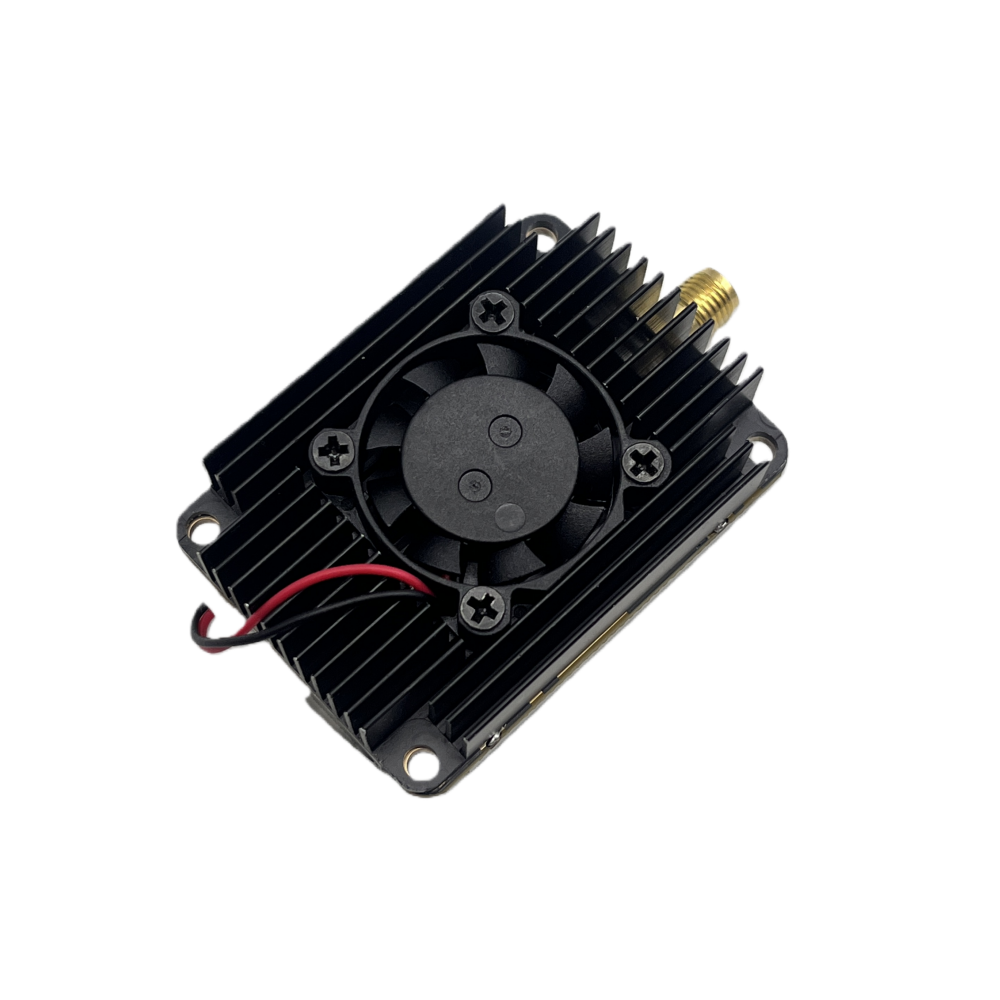

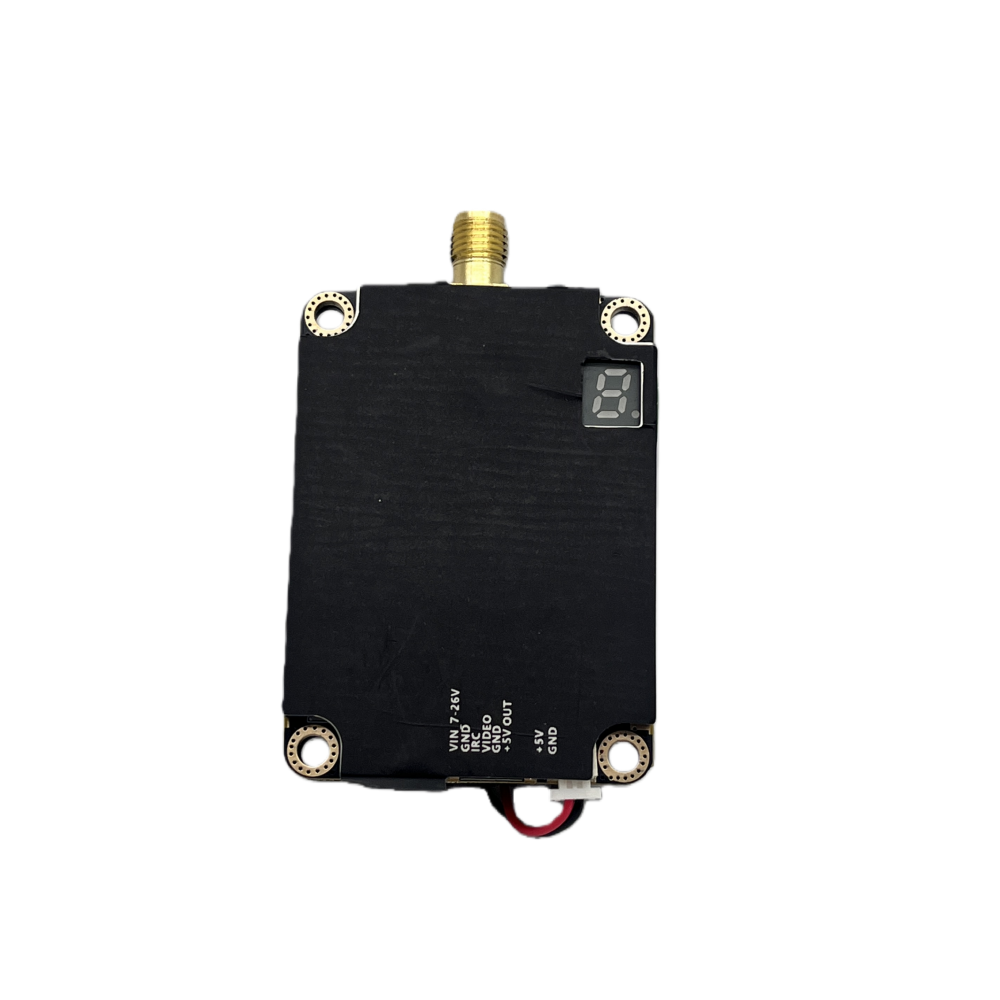

Parameter(Ultra Long Range All Channels Version Video Transmitter 3.3G 6W
ALV3306AC)
Input voltage: 7-26V
Extra Features: IRC 6000mW
Power Supply: 5v camera @ under 500mA max.
Output Power: 2000mW/6000mW
Microphone: Not supported
Antenna Connector: SMA
Cable Connector: JST, 6Pin
Dimensions: 50*36*16mm, 30.*44.5mm (hole)
Weight: 40.4g
Kit Contents: 1x VTX, 1x cable, 1x ANT
Key Features(Ultra Long Range All Channels Version Video Transmitter 3.3G 6W
ALV3306AC):
. Support IRC data
· 2000/6000mWpower switchable
. Built-in cooling fan
. OSD configuration using IRC
· 7-26Vinput with 5V output
Button Control Channel Select Mode
One button is used to set channel, band and power.
Channel Select
Short press to change 8 channels .
Band Select
Press the button for 2 seconds, LED will flicker anletter, then
short press to change 8 band from A-b-C-d-E-F-G-H
Power Select
Press the button for 4 seconds, LED will flicker annumber quickly,
then short press to change 2
powerlevels,1 is 2000mW, 2 is 6000mW
Press the button for 5 seconds until the LED displays P, at which
point 0dBm . Press and hold for 5 seconds to exit P mode .
Slow Power On
The VTX will wait for 3 seconds before turning on power amplifier.
The 3 seconds slow power on will protect the VTX from being burned
by maximum instantaneous power.
Pit Mode
The VTX is fully accessible via IRC data .
It supports Pit Mode .
3060-3500MHZ(64CH)
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A 3360 3380 3400 3420 3440 3460 3480 3500
b 3200 3220 3240 3260 3280 3300 3320 3340
C 3330 3350 3370 3390 3410 3430 3450 3470
d 3170 3190 3210 3230 3250 3270 3290 3310
E 3320 3345 3370 3395 3420 3445 3470 3495
F 3310 3330 3355 3380 3405 3430 3455 3480
G 3220 3240 3260 3280 3300 3320 3340 3360
H 3060 3080 3100 3120 3140 3160 3180 3200
HOT CAUTION
BE CAREFUL NOT TO BURN YOUR FINGERS
PLUG THE ANTENNA BEFORE POWERING THE VTX
NOT TO REMOVE THE COOLING FAN
